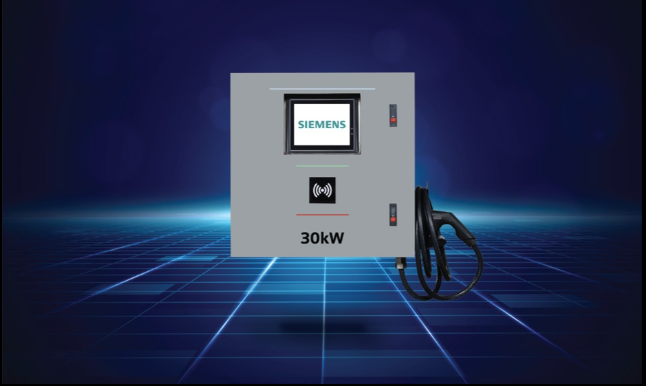

30Kwh Single Gun Ccs2 Dc Fast Ev Charger

Price 570000.00 INR/ Piece

MOQ : 1 Piece

30Kwh Single Gun Ccs2 Dc Fast Ev Charger Specification

Charger Type	DC Fast Charger
Frequency	50 Hertz (HZ)
Vehicle Type	Electric vehicle
Charger Capacity	30 Kilowatt
Origin	India

30Kwh Single Gun Ccs2 Dc Fast Ev Charger Trade Information

Minimum Order Quantity	1 Piece
Payment Terms	Cash in Advance (CID)
Supply Ability	2000 Pieces Per Month
Delivery Time	10 Week
Sample Available	No
Main Domestic Market	All India
Certifications	ARAI

Tell us about your requirement

About 30Kwh Single Gun Ccs2 Dc Fast Ev Charger

Charger type	DC fast charger
Charger capacity	30 kilowatt (kw)
	Parameters	Parameters
General Information	EV Charger Type	DC CCS-2
	Charger Capacity	30KW Commercial Charger
	Model Name	EVTRONE-HSEF-30K(D)1G(CCS2)W 1000S
	Mounting & Cable routing	Wall-Mounting & Bottom Intel wiring
Input Requirement	AC Supply System	3-Phase,5 Wire (3P, N, PE) AC System
	Input voltage & Current	AC400V-/+ 15% & 47Am
	Wires	5 Wires (L1, L2, L3, N, PE)
	Frequency	50Hz / 60Hz
Output Power	No of outputs	01
	Output Connectors	CCS-2 female connector
	Charging Interface	IEC 62196, 61851, SAE J 1772, CHAdeMO
	Output Voltage & Current	200 VDC - 1000 VDC & 80Amp Max
	Power Factor	>0.99(50% load above)
Environment	Ambient & Storage Temperature	25 degree to 55 degrees & -25 deg C to 75deg C
	Altitude & Humidity	<2000 Mtr & 5% to 95%, non-condensing
	Cooling Method	Air Forced Cooled
User Interface & Display	Charging Type	HMI/APP/CMS
	Display & Language	7" Display & English
	Push Button	Emergency Stop
	User Authentication	Mobile / QR Code / RFID / Password login
	Metering Information	Consumption Units(kWh)
Communication	Network Connectivity	LAN/GSM/Wi-Fi
	Firmware (between EVSE & CMS) & Connectivity	OCCP v.1.6 or above
	Communication between charger & vehicle	PLC Based Communication
	Updates	Through remote connection up to 2.0 J
Mechanical	IP Rating	IP54 / IK 10
	Cable Length & Weight	5 Mtr & 70kg
	Dimension	450760236mm
	Enclosure materials	Carbon steel
	Protection & Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, Door opening protection etc.
	Warranty	12 Months
